Automotive Electrical Tools Guide — Multimeters, Wire Strippers, and Crimping Tools Explained
Electrical problems are some of the most frustrating issues in automotive DIY — but they're also very solvable with the right tools and basic knowledge. Whether you're tracing a dead circuit, wiring an accessory, or diagnosing a charging system issue, this guide covers the essential electrical toolkit every home mechanic should have.

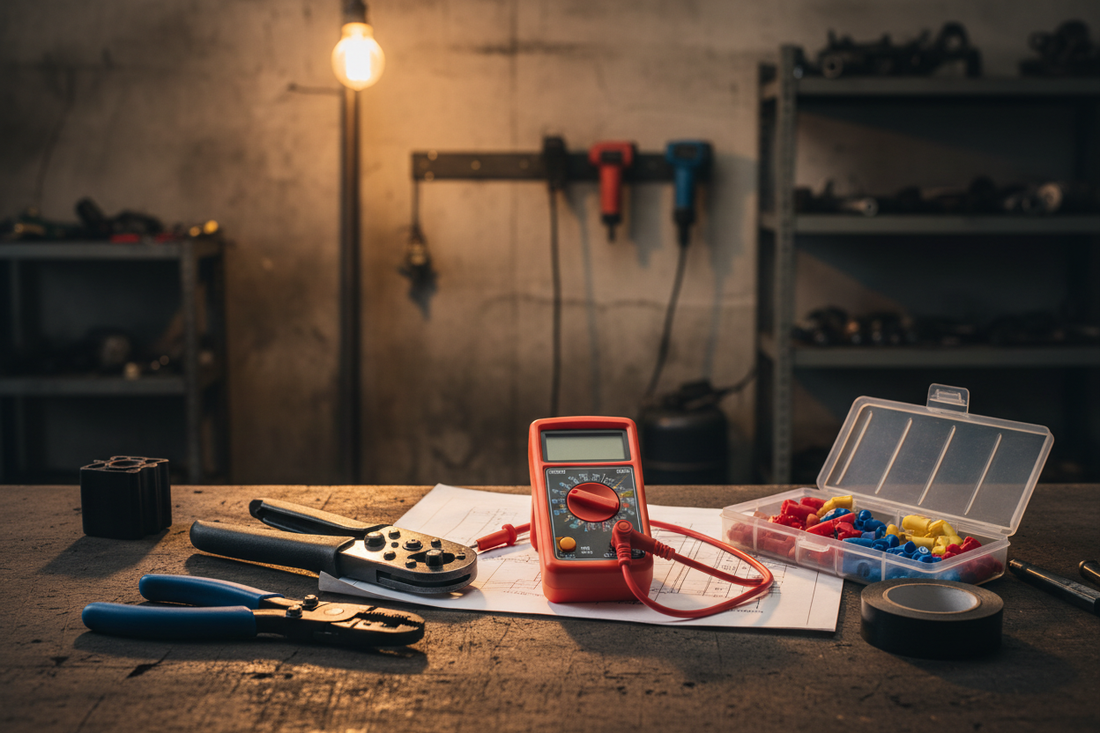

The Core Automotive Electrical Toolkit
- Digital multimeter (DMM) — the single most important electrical diagnostic tool. Measures voltage, current, and resistance. Tests batteries, alternators, fuses, sensors, and circuits.
- Wire stripper — removes insulation cleanly without nicking the wire. Automatic strippers are faster and more consistent than manual ones.
- Crimping tool — creates secure, weatherproof connections between wires and terminals. Ratcheting crimpers apply consistent pressure for reliable crimps every time.
- Test light — a simple and fast way to check if a circuit has power. Less precise than a multimeter but faster for quick checks.
- Electrical tape & heat shrink tubing — for insulating connections. Heat shrink is more durable and weatherproof than tape for permanent repairs.
- Wire connector assortment — butt connectors, ring terminals, spade connectors, and weatherproof connectors in common wire gauge sizes.
How to Use a Multimeter for Common Automotive Tests
- Battery voltage: Set to DC voltage (20V range). Red probe to positive terminal, black to negative. A healthy 12V battery reads 12.6V at rest, 13.7–14.7V with engine running (alternator charging).
- Fuse test: Set to DC voltage. Touch probes to both sides of the fuse with the circuit on. If one side reads voltage and the other reads 0, the fuse is blown.
- Continuity test: Set to continuity (beep symbol). Tests if a wire or circuit is unbroken. Beep = continuity, no beep = open circuit.
- Resistance: Set to ohms (Ω). Used to test sensors, solenoids, and windings against spec values in a service manual.
Wire Gauge Guide (AWG)
Matching wire gauge to amperage is critical for safety. Undersized wire overheats and can cause fires.
- 18 AWG — up to 16A. Sensors, lighting accessories, small electronics.
- 16 AWG — up to 22A. Tail lights, dome lights, relays.
- 14 AWG — up to 32A. Fog lights, horns, small motors.
- 12 AWG — up to 41A. Ignition wiring, power accessories, winches (small).
- 10 AWG — up to 55A. High-current accessories, amp power wires.
Crimping vs Soldering
- Quality ratchet crimp — faster, vibration-resistant, and preferred by most professional automotive technicians for in-vehicle wiring. A ratcheting wire stripper and crimping tool combo handles AWG 22–10 insulated connectors reliably.
- Soldering — creates a more permanent, lower-resistance connection. Better for high-current or exposed connections, and for splicing in tight spaces. Requires more skill and time.
- Avoid: twist-and-tape connections. These corrode, loosen, and fail over time — especially in engine bays.
