Coolant & Radiator Maintenance Guide — How to Check, Flush, and Refill Your Car's Cooling System
Your engine runs at temperatures between 195–220°F under normal operation. The cooling system — coolant, radiator, water pump, thermostat, and hoses — keeps that heat under control. Neglecting coolant maintenance leads to overheating, which is one of the most damaging and expensive engine failures a vehicle can suffer. This guide covers how to check your coolant, when to flush it, and how to do it yourself.
How the Cooling System Works
Coolant (antifreeze mixed with distilled water) circulates through the engine block, absorbing heat from combustion. It flows to the radiator where airflow cools it back down, then returns to the engine. The overflow/reservoir tank holds excess coolant as it expands with heat. A thermostat regulates flow until the engine reaches operating temperature, and the water pump keeps coolant moving throughout.
Checking Coolant Level and Condition
Never open the radiator cap when the engine is hot — the cooling system is pressurized and opening it hot can cause severe burns from escaping steam and coolant. Always check coolant when the engine is cold.

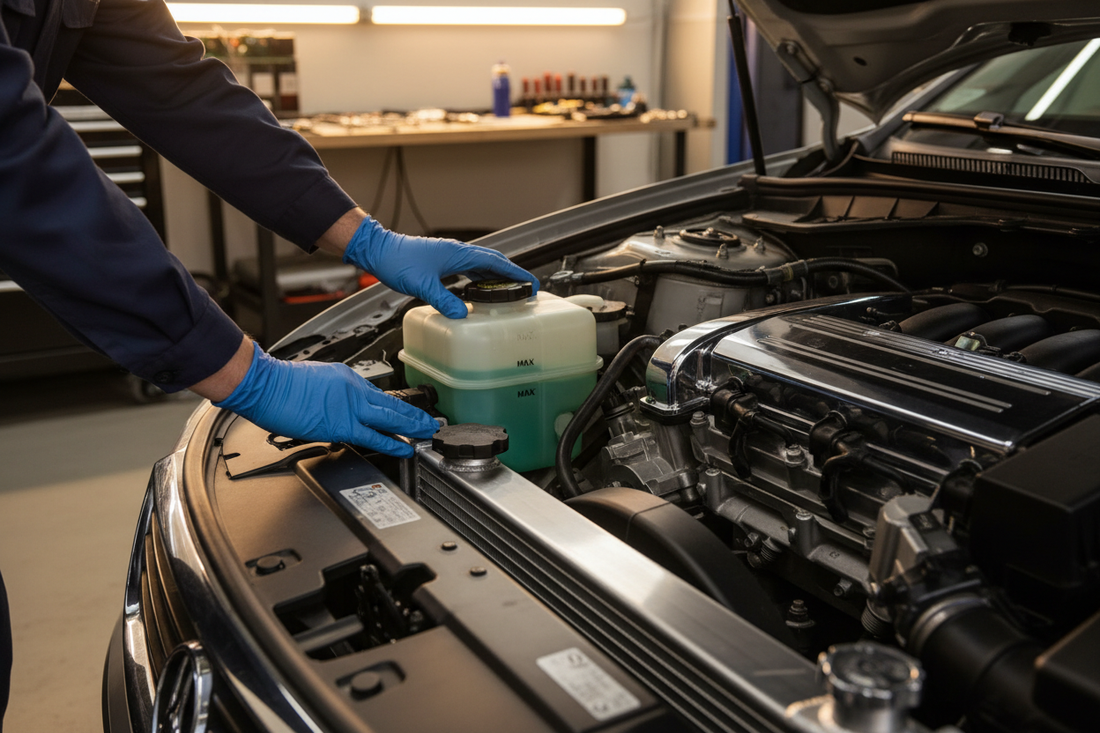

- Level check: Look at the coolant overflow/reservoir tank — it's a translucent plastic tank near the radiator. Coolant level should be between the MIN and MAX marks. If it's consistently low, have the system checked for leaks.
- Condition check: Fresh coolant is bright green, orange, pink, or blue depending on type. Brown, rusty, or murky coolant has degraded and needs flushing. You can also use an inexpensive coolant test strip to check freeze protection level and pH.
- Smell check: A sweet smell inside the cabin or under the hood often indicates a coolant leak — check hose connections, the radiator, and the reservoir cap seal.
Coolant Types — Don't Mix Them
Using the wrong coolant or mixing incompatible types causes chemical reactions that form a gel-like sludge that clogs the cooling system. Always use the coolant type specified in your owner's manual.
- Green (IAT — Inorganic Additive Technology): Traditional coolant. Used in most vehicles made before the mid-1990s. Replace every 2 years or 30,000 miles.
- Orange/Red (OAT — Organic Acid Technology): Used in GM, VW, and many European vehicles. Longer service life — 5 years or 150,000 miles. Do not mix with green coolant.
- Yellow/Pink (HOAT — Hybrid OAT): Used in Ford, Chrysler, and many Asian vehicles. 5-year service life. Also called "Global" or "universal" coolant in some formulations.
- Pre-mixed vs concentrate: Pre-mixed (50/50) is ready to use. Concentrate must be diluted 50/50 with distilled water — never tap water, which contains minerals that cause scale buildup.
When to Flush the Cooling System
- Every 2 years for green IAT coolant
- Every 5 years for OAT and HOAT coolants
- Any time coolant is brown, rusty, or smells burnt
- After overheating — overheating can cause coolant to break down rapidly
- When adding a new water pump, thermostat, or radiator
DIY Coolant Flush — Step by Step
- Step 1: Let the engine cool completely — at least 2 hours after last driving.
- Step 2: Place a large drain pan under the radiator drain petcock (bottom corner of radiator). Open the petcock and let old coolant drain completely. Some vehicles require removing the lower radiator hose if there's no petcock.
- Step 3: Close the petcock, fill the system with distilled water, run the engine to operating temperature with the heater on full heat (opens the heater core), then drain again. Repeat until the drained water runs clear.
- Step 4: Close the petcock and fill with the correct coolant type — pre-mixed or 50/50 diluted with distilled water. Fill slowly to avoid air pockets.
- Step 5: Run the engine with the heater on, top off as needed, then replace the cap. Check the reservoir level after the engine cools and top off if necessary.
A 16-quart clear drain container with carrying handle makes coolant flush clean and easy — large enough to hold a full system flush without spilling, with a translucent body so you can see when the drain runs clear.
Cooling System Warning Signs
- Temperature gauge rising above normal operating range — pull over immediately if it reaches red
- Coolant puddles under the car (sweet smell, bright color)
- White smoke from the exhaust (coolant burning in combustion — potential head gasket issue)
- Heater blowing cold air when engine is warm (low coolant or air in system)
- Overflow tank consistently empty despite refilling
