Coolant & Radiator Maintenance Guide — How to Check, Flush, and Replace Engine Coolant
Engine coolant — also called antifreeze — does two jobs: it prevents the coolant from freezing in winter and raises its boiling point in summer. Beyond temperature protection, coolant contains corrosion inhibitors that protect the aluminum, steel, and rubber components inside the cooling system. As coolant ages, these inhibitors deplete, and the fluid becomes acidic — actively corroding the radiator, water pump, heater core, and engine block passages. Neglected coolant is one of the leading causes of water pump and radiator failure. This guide covers how to check coolant condition, what the color codes mean, and how to perform a complete flush.
Understanding Coolant Types
Green (IAT — Inorganic Additive Technology)
The traditional green coolant used in most vehicles before the mid-1990s. Uses silicate-based corrosion inhibitors that work quickly but deplete faster. Service life: 2 years or 30,000 miles. Still required in some older vehicles and certain heavy-duty applications.
Orange/Red (OAT — Organic Acid Technology)
Introduced by GM (Dex-Cool) in the mid-1990s. Uses organic acid inhibitors that last longer — typically 5 years or 150,000 miles. Incompatible with silicate-based green coolant — mixing causes a thick gel that blocks passages and destroys the cooling system.
Yellow/Gold (HOAT — Hybrid OAT)
Combines silicate and organic acid inhibitors. Used by Ford, Chrysler, and many European and Asian manufacturers. Service life: 5 years or 150,000 miles. Also incompatible with other types — always use the type specified for your vehicle.
Critical rule: Never mix coolant types. When in doubt, flush completely before refilling with a new type. Always use the coolant type and color specified in your owner's manual.
How to Check Coolant Condition
Visual Inspection

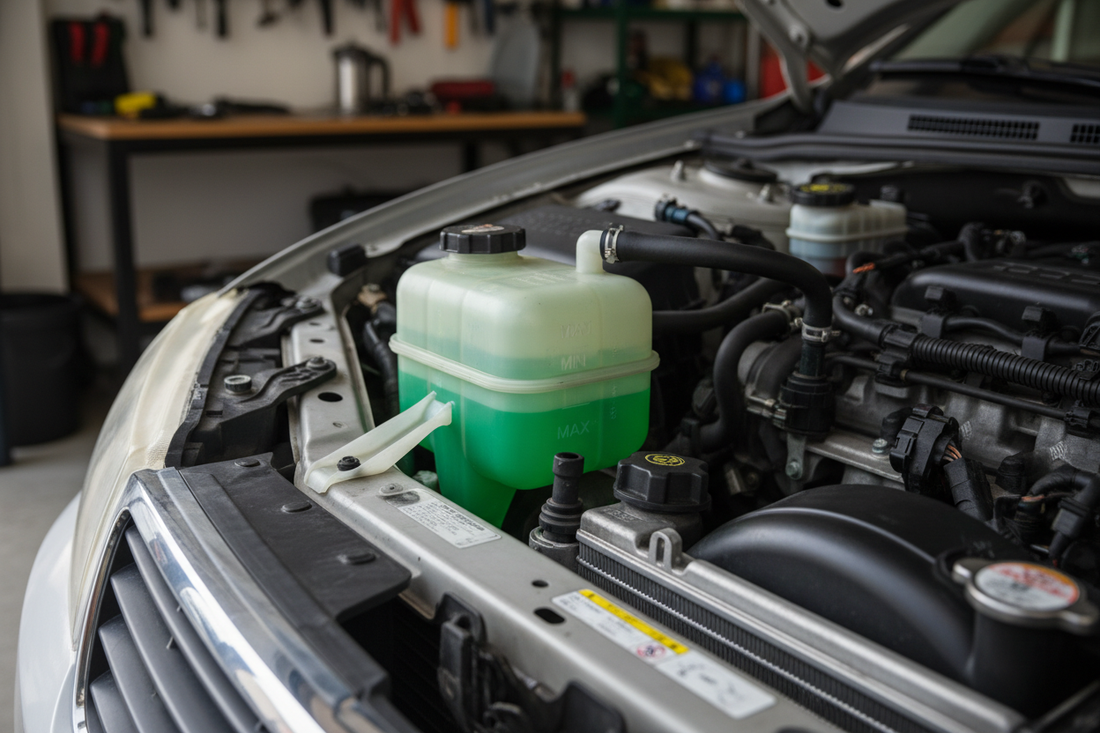

The coolant reservoir is a translucent plastic tank near the radiator with MIN/MAX markings. Check the level visually — a low level indicates either evaporation (normal over years) or a leak. Check the color — fresh coolant is bright and translucent. Rusty brown or black coolant, or coolant with oily film floating on top (possible head gasket leak), needs immediate attention.
Freeze Point Testing
A coolant hydrometer or refractometer tests the freeze protection level of the coolant — showing the lowest temperature at which it remains liquid. Most vehicles should be protected to at least −34°F (−37°C). If the freeze point has risen (usually from water dilution over time), the coolant needs to be strengthened or replaced.
pH Testing
Coolant test strips measure the pH of the fluid. Fresh coolant is slightly alkaline (pH 8–11). Acidic coolant (pH below 7) has exhausted its corrosion inhibitors and is actively corroding internal components — flush immediately regardless of mileage or appearance.
Coolant Flush — Step by Step
Safety first: Never open the radiator cap or coolant reservoir on a hot engine. The cooling system is pressurized — opening it hot causes scalding steam and coolant to erupt. Wait until the engine is completely cold.
Materials Needed
- New coolant (correct type for your vehicle)
- Distilled water (for mixing — never use tap water, which contains minerals that cause deposits)
- Radiator flush product (optional for severely contaminated systems)
- Drain pan with sufficient capacity (typically 1.5–2x your cooling system capacity)
- Funnel
- Pliers or screwdriver for hose clamps (on some vehicles)
Step 1 — Drain the Old Coolant
Locate the radiator drain petcock — a plastic or brass valve at the bottom corner of the radiator. Position the drain pan beneath it. Open the petcock and allow the coolant to drain fully. On vehicles without a petcock, the lower radiator hose must be disconnected at the radiator. Remove the radiator cap to allow air in and speed drainage.
Step 2 — Flush (If Needed)
For severely contaminated systems, close the petcock, fill with distilled water (and radiator flush product if using), run the engine to operating temperature, allow to cool completely, then drain again. Repeat until the drained fluid runs clear.
Step 3 — Refill with Fresh Coolant
Most manufacturers recommend a 50/50 mix of coolant concentrate and distilled water, which provides freeze protection to approximately −34°F and boil-over protection to approximately 265°F. Pre-mixed 50/50 coolant is also available for convenience. Fill slowly through the radiator cap opening (not just the reservoir) to minimize air pockets.
Step 4 — Bleed Air from the System
Air pockets in the cooling system cause hot spots and overheating. With the radiator cap off, start the engine and let it warm up. As the thermostat opens, coolant will circulate and air will bubble out at the radiator opening — top off as needed. Some vehicles have bleed screws on the thermostat housing or upper radiator hose for this purpose. Reinstall the cap once coolant flows steadily without bubbles.
Coolant Change Intervals
- Green IAT coolant: every 2 years or 30,000 miles
- Orange/Red OAT and Yellow/Gold HOAT: every 5 years or 150,000 miles
- Any time coolant appears rusty, brown, or oily
- Any time pH tests acidic (below 7)
- After any cooling system repair (water pump, thermostat, radiator replacement)
Warning Signs of Cooling System Problems
- Overheating temperature gauge: Pull over immediately — driving an overheating engine causes head gasket failure and warped cylinder heads
- Sweet smell from the engine bay: Coolant leak — check hoses, clamps, and the reservoir for external leaks
- White smoke from the exhaust: Possible head gasket failure — coolant entering the combustion chamber
- Milky oil on the dipstick: Coolant mixing with engine oil — head gasket failure, requires immediate professional diagnosis
- Reservoir consistently low: External or internal leak — locate and repair before refilling
