Fuel Filter Replacement Guide — How to Replace an Inline Fuel Filter at Home
The fuel filter removes contaminants — rust particles, sediment, and debris — from the fuel supply before it reaches the fuel injectors. A clogged fuel filter restricts fuel flow to the engine, causing symptoms that range from hesitation under acceleration to hard starting, rough idle, and stalling under load. In severe cases, a restricted filter forces the fuel pump to work harder than designed, shortening its service life. Fuel pump replacement costs $300–800 including labor; a fuel filter costs $10–40. This guide covers filter location, service intervals, and the replacement procedure for inline external filters.
Fuel Filter Location
Fuel filter location varies significantly by vehicle:
- Inline external filter: Located along the fuel line under the vehicle or in the engine bay. A cylindrical metal or plastic canister with fuel lines entering each end. This type is serviceable by the DIYer.
- In-tank filter (sock): A mesh filter attached to the bottom of the fuel pump module inside the fuel tank. Replaced as part of a fuel pump assembly replacement. Not separately serviceable in most cases.
- Integrated in the fuel pump module: Many modern vehicles combine the fuel pump, fuel level sender, and filter into a single module inside the tank. No separate inline filter exists. Check your owner's manual — if no service interval is listed for the fuel filter, the filter is likely in-tank and replaced with the pump.
Consult your owner's manual or a vehicle-specific service guide to confirm filter location before purchasing parts.
Service Interval
- External inline filter: Every 20,000–40,000 miles, or per manufacturer specification
- After contaminated fuel exposure (water in tank, dirty fuel source): immediately
- When symptoms of fuel restriction appear (hesitation, hard start, stalling under load): inspect and replace regardless of mileage
Inline Fuel Filter Replacement — Step by Step
Safety first: Fuel systems are pressurized. Relieve fuel system pressure before disconnecting any fuel line. The common method is to locate the fuel pump fuse or relay in the fuse box, start the engine, remove the fuse, and let the engine stall — this exhausts residual pressure. Then crank the engine for 2–3 seconds to confirm no restart. Work in a well-ventilated area away from ignition sources. Have a fire extinguisher accessible.
- Relieve fuel system pressure using the method above.
- Locate the fuel filter. Place a rag under the filter to catch residual fuel.

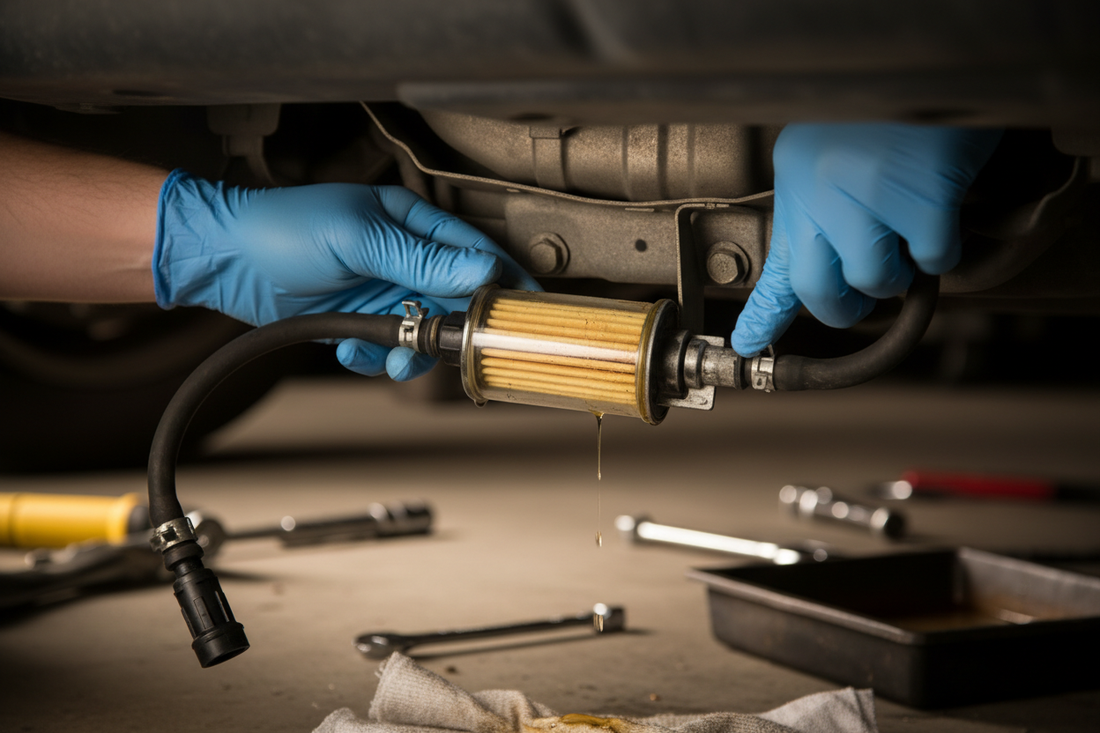

- Disconnect the fuel lines. External filters use quick-connect fittings (press a release tool or tabs and pull) or threaded banjo bolts. Note the flow direction arrow on the filter body — fuel flows from the tank toward the engine.
- Remove the filter from its bracket or mounting clamp.
- Install the new filter in the same orientation — flow direction arrow pointing toward the engine. Seat quick-connect fittings until they click; torque banjo bolts to specification.
- Restore the fuel pump fuse. Turn the ignition key to ON (not start) for 3–5 seconds, then OFF. Repeat 2–3 times to prime the fuel system before starting.
- Start the engine and check for fuel leaks at both filter connections. Even a small fuel leak at a connection is a fire hazard — address immediately.
