Spark Plug Replacement DIY Guide — How to Change Spark Plugs at Home and What Each Plug Type Means
Spark plugs ignite the air/fuel mixture in each cylinder — hundreds of times per minute at highway speed. As electrodes wear, the gap widens, ignition timing becomes inconsistent, and combustion efficiency drops. The result is reduced fuel economy, rough idle, hesitation under acceleration, and eventually a misfiring cylinder that triggers a check engine light. Spark plug replacement is a 30–60 minute job on most 4-cylinder engines and one of the higher-impact maintenance tasks for restoring engine performance. This guide covers plug types, how to read a used plug's condition, and a complete step-by-step replacement procedure.
Spark Plug Types
Copper (Standard)
The traditional spark plug with a copper core center electrode. Good conductivity and heat transfer but the largest electrode diameter of all types — requires higher voltage to fire and wears fastest. Service life: 20,000–30,000 miles. Used in older vehicles and some high-performance applications where frequent replacement is acceptable.
Platinum
Platinum tip on the center electrode reduces wear significantly. Service life: 60,000–80,000 miles. Standard equipment on most vehicles from the 1990s through mid-2000s. Double-platinum plugs add a platinum disc to the ground electrode as well and are used in distributor-less ignition systems.
Iridium
Iridium is harder and has a higher melting point than platinum, allowing a finer center electrode tip (0.4–0.6mm vs 1.1mm for copper). The fine tip requires lower voltage to fire, produces a more consistent spark, and wears extremely slowly. Service life: 80,000–120,000 miles. Standard equipment on most modern vehicles. More expensive but the long service interval makes the cost per mile competitive with cheaper plugs.
Double Iridium / Ruthenium
Premium plugs with iridium or ruthenium on both center and ground electrodes. Best longevity and most consistent spark across the service life. Service life: 100,000–120,000+ miles. Recommended for high-mileage vehicles and turbocharged engines that stress plugs harder.

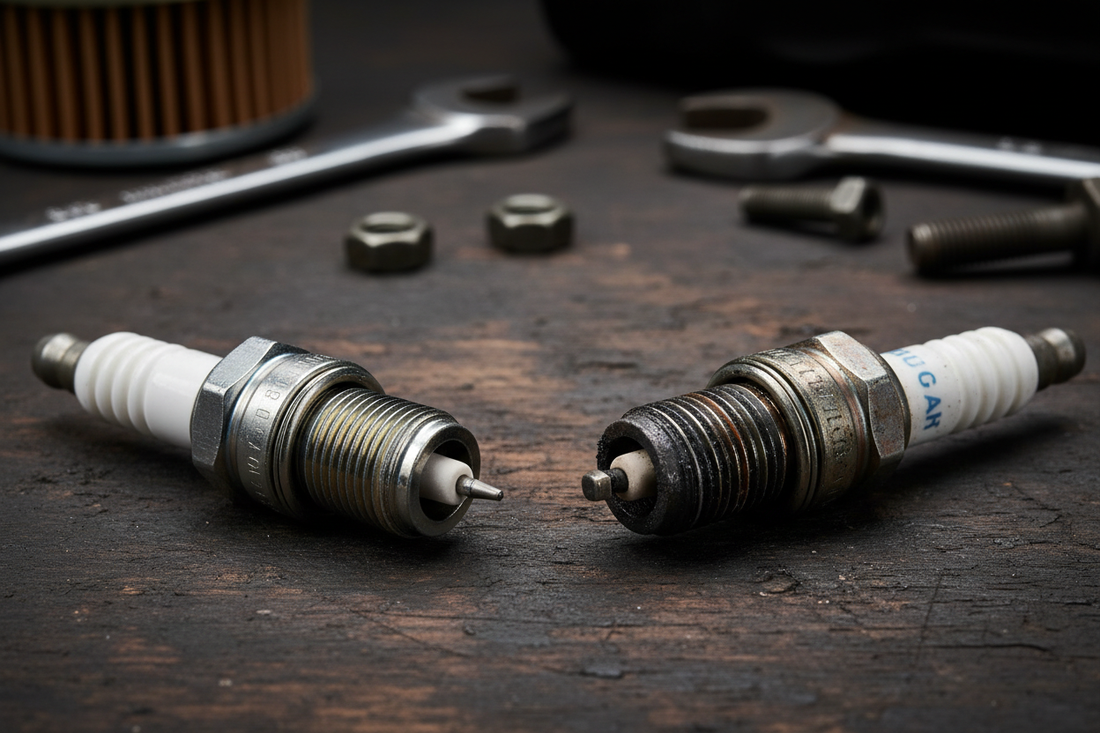

How to Read a Used Spark Plug
A removed spark plug tells you a great deal about what's happening inside that cylinder:
- Light gray or tan deposits, slightly worn electrode: Normal combustion — plug is healthy
- Black, sooty, dry deposits: Rich fuel mixture or oil burning — check fuel trims or valve seals
- Black, oily, wet deposits: Oil fouling — worn piston rings or valve stem seals
- White or chalky deposits, blistered insulator: Overheating — wrong heat range, coolant leak, or lean mixture
- Melted electrode or insulator: Severe pre-ignition or detonation — investigate immediately before replacing
- Worn electrode with large gap: Normal wear at end of service life — replace
Tools Required
- Spark plug socket (5/8", 13/16", or 14mm — vehicle specific) with rubber insert to grip the plug
- Socket extension (3" and 6" — engine access varies)
- Universal joint / swivel for angled access on some engines
- Torque wrench (critical — over-tightening strips aluminum cylinder head threads)
- 3/8" drive ratchet
- Spark plug gap gauge (verify new plugs are pre-gapped correctly)
- Dielectric grease (for boot connections)
- Compressed air or shop vacuum (to clear debris from plug wells before removal)
Recommended Tools
- 3/8" Drive Spark Plug Socket Set with Click Torque Wrench 5–45 Ft.lb, 14mm/16mm/5/8", 10" Extension Bar & Adapters
- 14PCS Swivel Magnetic Spark Plug Socket Set with Torque Wrench 3/8", 10–60 Nm, Universal Joint & Extension Bar
- AEROFORCE 14PCS 3/8" Drive Swivel Magnetic Spark Plug Socket Set with Torque Wrench 5–45 Lb.ft — CR-V Steel
- 14-Piece 3/8" Drive Spark Plug Socket Set with Torque Wrench 4.2–85 N.m, Magnetic Swivel Socket & Extension Bar
- 10PCS Full Magnetic Spark Plug Socket Set with 3/8" Torque Wrench 5–50 FT.LB — 14, 16, 18mm & SAE Sizes
Step-by-Step Spark Plug Replacement
Step 1 — Let the Engine Cool
Work on a cold engine. Aluminum cylinder heads expand when hot — removing plugs from a hot engine risks cross-threading and galling the threads. Wait at least 2 hours after the last drive.
Step 2 — Clear the Plug Wells
Use compressed air or a vacuum to remove any dirt, debris, or leaves from around the coil packs or plug wires before removing anything. Any debris that falls into an open plug hole goes directly into the combustion chamber.
Step 3 — Remove Coil Pack or Plug Wire
On modern coil-on-plug (COP) systems, disconnect the electrical connector and remove the coil pack bolt, then lift the coil pack straight up. On older systems with plug wires, grip the boot (not the wire) and twist while pulling to remove. Label the wires if removing more than one at a time.
Step 4 — Remove the Old Plug
Attach the spark plug socket to an extension and ratchet. Seat the socket fully onto the plug and turn counterclockwise. If the plug is very tight, apply penetrating oil and wait — do not force a seized plug with excessive torque. Once loose, spin out by hand. Inspect the old plug before discarding.
Step 5 — Check the Gap on New Plugs
Most pre-gapped plugs are correct from the factory, but verify with a gap gauge. The correct gap for your vehicle is in the owner's manual or on the emissions sticker under the hood. Do not attempt to adjust iridium or platinum plug gaps with a standard gap tool — the fine electrode tips are fragile.
Step 6 — Install the New Plug
Thread the new plug in by hand first — always. Cross-threading a spark plug into an aluminum head is a costly repair. Once hand-tight, torque to spec with a torque wrench. Typical torque specs: 13–20 ft-lb for aluminum heads, 7–15 ft-lb for tapered seat plugs (no washer). Check your vehicle's specific spec.
Step 7 — Apply Dielectric Grease and Reinstall Coil
Apply a thin coat of dielectric grease to the inside of the coil boot or plug wire boot. This prevents the boot from bonding to the ceramic insulator and makes future removal easier. Reinstall the coil pack or wire, reconnect the electrical connector, and repeat for remaining cylinders.
Step 8 — One Cylinder at a Time
On engines with plug wires, always complete one cylinder fully before moving to the next. Swapped plug wires cause misfires, and on some engines the firing order is not sequential to the cylinder numbers.
