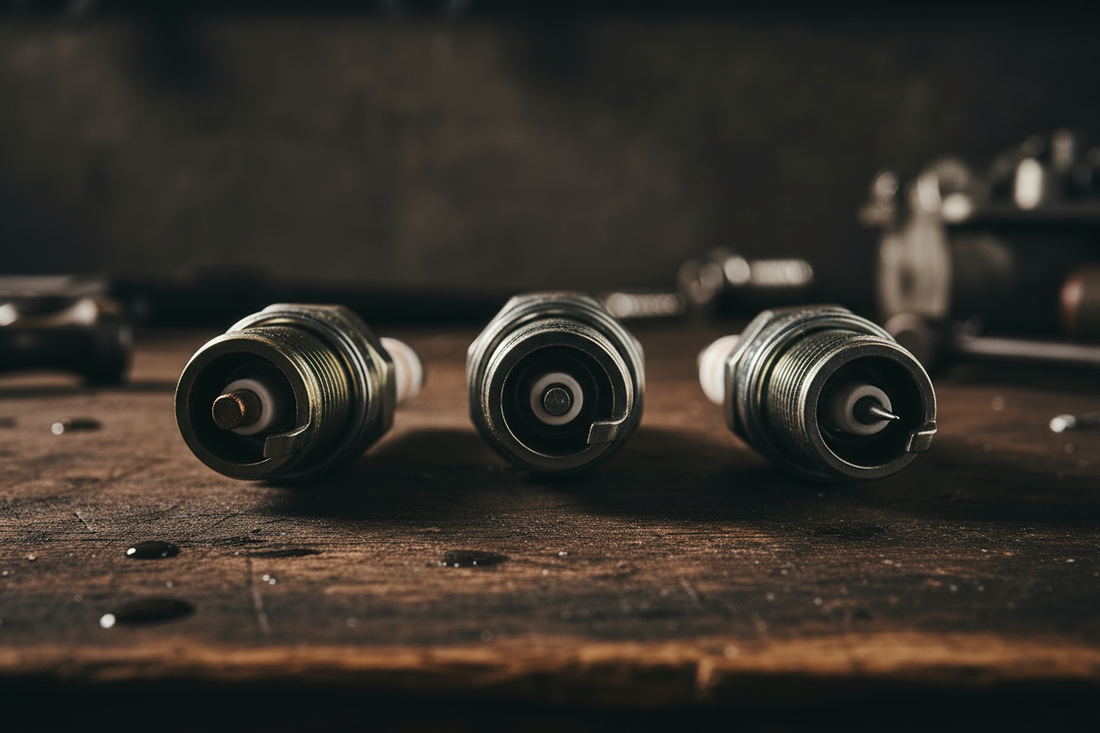

Three spark plug types side by side on a dark garage workbench — copper plug with large nickel electrode on left, platinum plug in center, iridium plug with ultra-fine electrode tip on right

Spark Plug Replacement Guide — How to Check, Gap, and Replace Spark Plugs at Home

Spark plugs ignite the air-fuel mixture in each cylinder. A plug that is worn, fouled, or gapped incorrectly misfires — failing to ignite the mixture completely. Misfires waste fuel, increase hydrocarbon emissions, cause rough idle and hesitation, and in severe cases allow raw fuel to enter the catalytic converter, overheating and destroying it. Catalytic converter replacement costs $800–2,500. Spark plug replacement is one of the highest-return maintenance tasks you can perform at home. This guide covers plug types, reading plug condition, gapping, and the complete replacement procedure.

Spark Plug Types

  • Copper (Nickel): Largest electrode, lowest cost, shortest service life (20,000–30,000 miles). Requires a resistor-tipped plug in most modern ignition systems. Used as OEM in older vehicles and some high-performance applications with upgraded ignition systems.
  • Platinum: Single platinum tip on the center electrode. 60,000-mile service life. More resistant to erosion than copper. Double platinum (platinum on both center and ground electrode) extends life further and is suited for waste-spark ignition systems.
  • Iridium: Smallest electrode diameter (0.4–0.6mm), highest melting point, longest service life (60,000–100,000 miles). Finest spark, most complete combustion. OEM in most modern vehicles. Do not substitute copper or platinum plugs in a vehicle specifying iridium — the larger electrode changes combustion characteristics.

Always use the exact plug specification from your owner's manual or the OEM plug part number. Heat range, thread pitch, reach, and seat type must match exactly.

Reading Spark Plug Condition

A removed spark plug tells you about combustion conditions in that cylinder. Inspect each plug before discarding:

  • Light tan/gray deposits, slight electrode wear: Normal combustion — plug has reached its service interval
  • Heavy black sooty deposits: Rich mixture or oil burning — check fuel trims, air filter, PCV system
  • Oily black deposits: Oil entering the combustion chamber — worn piston rings or valve stem seals
  • White/blistered insulator: Overheating — incorrect heat range, lean mixture, cooling system issue, or timing problem
  • Melted or eroded electrode: Pre-ignition or detonation — requires diagnosis before installing new plugs
  • Heavy rust-colored deposits: Coolant entering combustion chamber — head gasket failure
Mechanic inspecting removed spark plugs on a garage workbench — normal tan deposits on left, heavy black carbon fouling in center, white blistered overheated insulator on right

Gapping

The gap between the center and ground electrode determines spark energy. Pre-gapped plugs from the manufacturer are set to a common gap but may not match your vehicle's specification exactly. Check the gap with a wire-type feeler gauge (not a flat blade gauge, which gives inaccurate readings on fine-wire iridium tips) and adjust if needed. Do not adjust the gap on iridium or platinum plugs by bending the center electrode — only the ground electrode should be adjusted, and only gently. Cracking the ceramic insulator by forcing a too-large gauge destroys the plug.

Spark Plug Replacement — Step by Step

  1. Let the engine cool completely. Installing plugs in a hot aluminum head risks cross-threading and galling.
  2. Locate the plugs. On inline engines, the plugs are along the top or side of the engine, under the ignition coils or plug wires. On V6/V8 engines, the rear bank plugs may require removing intake components for access.
  3. Remove the coil or wire. For coil-on-plug systems, remove the single bolt securing the coil and pull it straight out. For plug wire systems, pull from the boot (not the wire) with a twisting motion.
  4. Remove the plug. Use a spark plug socket (5/8" or 13/16" with a rubber insert to grip the plug) and a ratchet or breaker bar. Turn counterclockwise. If the plug is stuck, apply penetrating oil and wait — do not force it.
  5. Inspect and gap the new plug.
  6. Install by hand first. Thread the new plug in by hand for the first several turns to avoid cross-threading. Once hand-tight, use a torque wrench to tighten to specification (typically 13–20 ft-lbs for most passenger car applications — verify in your service manual). Do not overtighten.
  7. Reinstall the coil or wire and repeat for each cylinder.
  8. Start the engine and check for smooth idle. Any misfire code (P0300–P0308) after replacement indicates a plug not fully seated, a damaged coil, or a cross-threaded plug.
Close-up of mechanic using spark plug socket with extension and ratchet to install a spark plug into an engine cylinder head, ignition coil visible nearby
