Wiper Blade Replacement DIY Guide — Beam vs Traditional, How to Choose the Right Size, and Step-by-Step Install
Wiper blades are one of the easiest and most overlooked maintenance items on any vehicle. Worn blades streak, skip, and smear — reducing visibility in rain and creating a dangerous driving situation. Replacing them takes under five minutes per blade and costs a fraction of what a shop charges. This guide covers the two main types, how to pick the right size, and how to install them correctly.

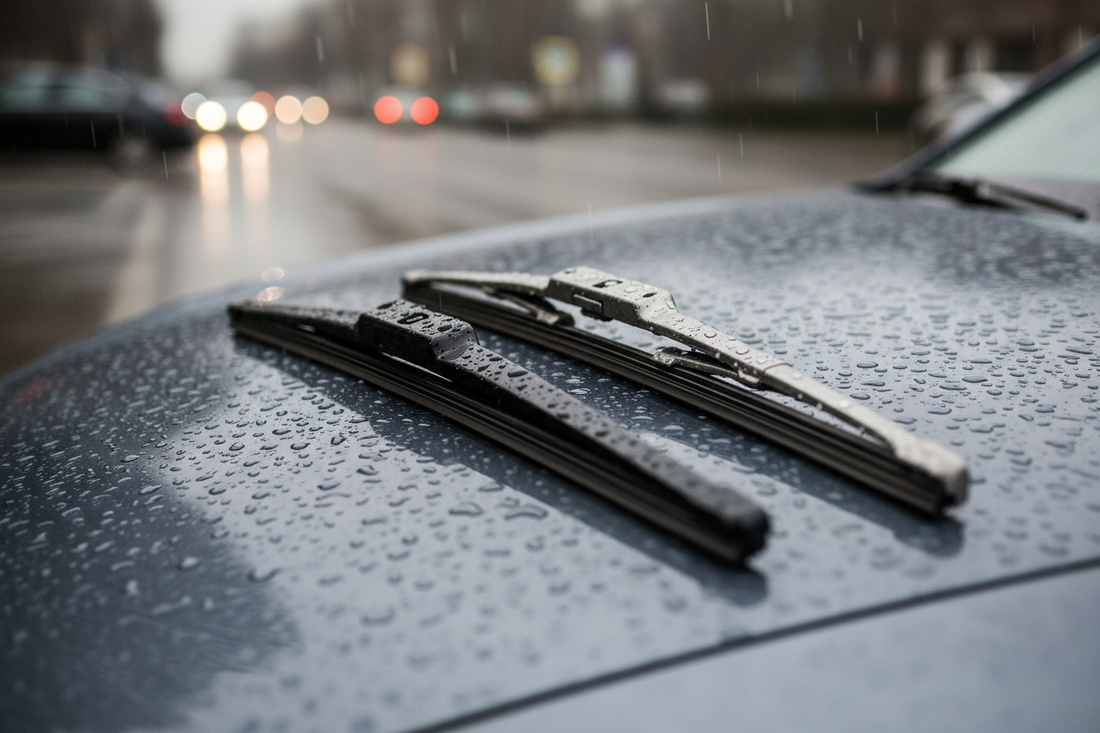

Beam Wiper Blades vs Traditional Frame Wipers
Traditional Frame (Bracket) Wiper Blades
The classic design with a metal frame and multiple contact points that hold the rubber squeegee against the windshield. Widely available and inexpensive. The frame design can collect ice and snow, which reduces contact pressure in winter and causes skipping. Most budget-friendly option and still effective in mild climates.
- Lower upfront cost
- Metal frame collects ice and debris — less effective in snow and freezing conditions
- Multiple pressure points can leave uneven wipe patterns as the blade ages
Beam (Frameless) Wiper Blades
A single piece of pre-tensioned rubber or silicone with no external frame. The blade curves to match the windshield's profile and applies even pressure across the entire wipe zone. No frame means no ice buildup — performs better in winter. More durable than traditional blades and typically lasts 1–2 years vs 6–12 months for traditional.
- Even pressure across the full blade = streak-free wipe
- No frame to collect ice or debris — better winter performance
- Higher upfront cost but longer service life
- Now standard on most new vehicles
Winter Wiper Blades
A traditional frame wiper encased in a rubber boot that seals out ice, snow, and slush. Designed specifically for cold climates. Swap on in fall and remove in spring — the rubber boot traps heat in summer and accelerates wear.
How to Find the Right Wiper Blade Size
Driver and passenger side blades are almost always different lengths. Check your owner's manual or use the blade size lookup tool at any auto parts store or retailer website — enter your year, make, and model to get the correct sizes. The driver's side is typically longer (24–28") and the passenger side shorter (16–22"). The rear wiper (if equipped) is usually 12–16".
Most modern blades use a universal "hook" attachment style, but some vehicles use a pinch tab, pin arm, or side pin connector — check which type your wiper arm uses before buying.
Wiper Blade Installation — Step by Step
- Step 1: Lift the wiper arm away from the windshield until it locks in the raised position. Place a folded towel on the windshield under the arm — if the arm springs back with no blade attached, it can crack the glass.
- Step 2: Find the release tab where the blade attaches to the arm. Press or squeeze it and slide the old blade down and off the hook.
- Step 3: Slide the new blade onto the hook in the same orientation until it clicks securely. Give it a gentle tug to confirm it's locked.
- Step 4: Lower the arm back onto the windshield gently. Repeat on the passenger side.
- Step 5: Test with washer fluid — both blades should wipe cleanly without streaking or skipping.
When to Replace Wiper Blades
- Streaking or smearing in light rain — the rubber edge has hardened or cracked
- Skipping or chattering across the windshield — the blade has lost uniform contact pressure
- Squeaking even after cleaning the windshield — rubber is dried out
- Visible cracks, tears, or stiff rubber on the squeegee edge
- As a rule: every 6–12 months for traditional blades, every 12–24 months for quality beam blades
Windshield Prep Tips
- Clean the windshield thoroughly before installing new blades — road film and wax residue will immediately contaminate a new blade and cause streaking
- Wipe the rubber edge of new blades with isopropyl alcohol before first use to remove mold release agents from manufacturing
- Apply a rain repellent like Rain-X to the glass for dramatically improved visibility in rain — water beads and sheets off, reducing how hard your wipers have to work
