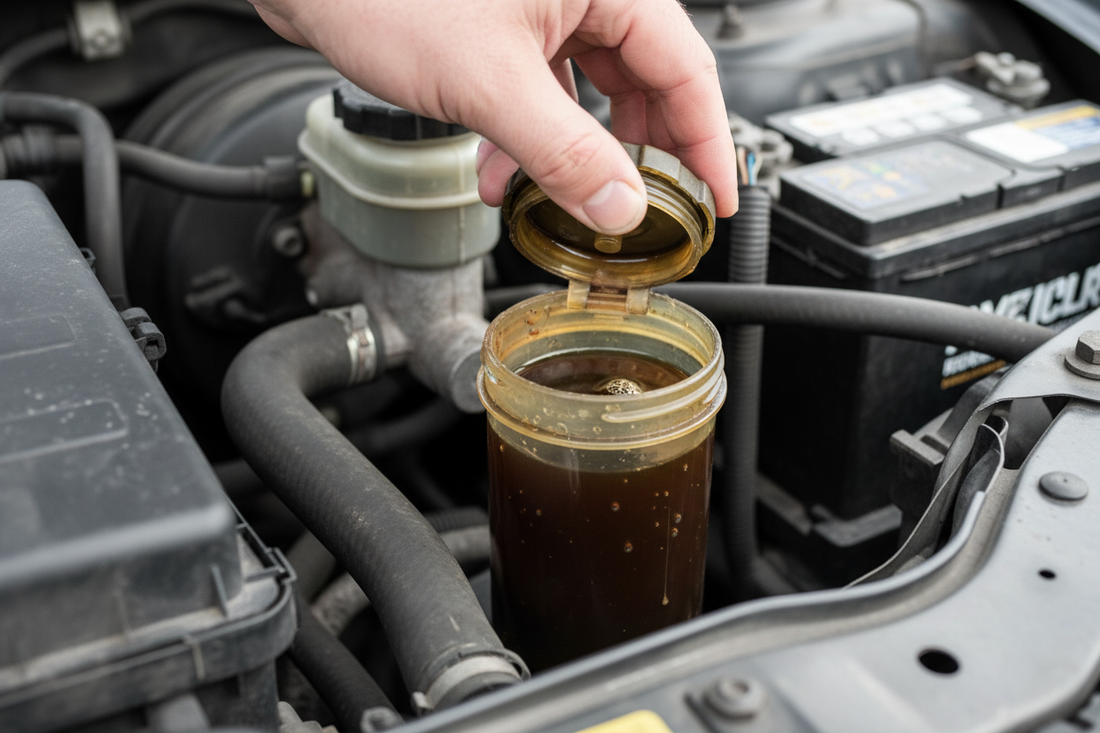

Car brake fluid reservoir under the hood — translucent brake fluid reservoir cap being opened, dark amber old brake fluid visible inside the engine bay

Brake Fluid Replacement & Inspection Guide — How to Check, Flush, and Bleed Your Brake System

Brake fluid is hygroscopic — it absorbs moisture from the atmosphere through the brake lines and reservoir over time. As water content increases, the fluid's boiling point drops significantly. Fresh DOT 3 fluid boils at 401°F. At just 3% water absorption (typical after 2–3 years), that drops to around 284°F — well within reach during heavy braking on a mountain descent or track session. When brake fluid boils, it vaporizes, and vapor compresses where fluid doesn't. The result is a soft or spongy brake pedal that sinks to the floor under hard braking — a condition called brake fade. Beyond safety, degraded fluid becomes acidic and corrodes master cylinders, calipers, and wheel cylinders from the inside. This guide covers how to check fluid condition, what the DOT ratings mean, and how to perform a complete flush.

Brake Fluid DOT Ratings

DOT 3

The most common brake fluid. Glycol-ether based. Dry boiling point: 401°F (205°C). Wet boiling point (3.7% water): 284°F (140°C). Compatible with most domestic and older vehicles. Absorbs moisture relatively quickly — flush every 2 years or 30,000 miles.

DOT 4

Higher boiling point than DOT 3. Dry: 446°F (230°C). Wet: 311°F (155°C). Required by many European vehicles and recommended for performance driving. Compatible with DOT 3 systems but do not mix going the other direction — DOT 4 raises performance in a DOT 3 system, but diluting DOT 4 with DOT 3 reduces its advantage. Flush every 2 years.

DOT 5

Silicone-based — does NOT absorb moisture. Cannot be mixed with DOT 3 or DOT 4 under any circumstances. Used in some military and specialty vehicles. Not recommended for ABS-equipped vehicles due to compressibility differences. High boiling point but the non-hygroscopic property means water pools rather than being absorbed, which can cause localized corrosion.

DOT 5.1

Glycol-ether based (like DOT 3/4, not silicone like DOT 5 despite the name). Highest boiling point of the glycol-ether fluids. Dry: 500°F (260°C). Compatible with DOT 3 and DOT 4. Used in high-performance and heavy-duty applications.

Always use the fluid type specified in your owner's manual or on the brake reservoir cap.

How to Check Brake Fluid Condition

Visual Check

The brake fluid reservoir is a small translucent plastic reservoir on top of the master cylinder, typically at the rear of the engine bay on the driver's side. Check the level against the MIN/MAX markings. A low level can indicate normal pad wear (as pads wear, the caliper pistons extend further and fluid fills the space — this is normal) or a leak. Dark brown or black fluid has exceeded its service life and should be flushed. Fresh fluid is clear to light yellow.

Brake bleeding procedure — vacuum bleeder pump attached to a brake caliper bleed nipple with clear tubing showing dark old brake fluid being extracted

Test Strips

Brake fluid test strips measure copper content, which increases as the fluid's corrosion inhibitors deplete. High copper content (above 200 ppm) indicates the fluid is actively corroding the system and must be replaced. Strips are inexpensive and give a result in seconds — a useful addition to any annual maintenance check.

Brake Fluid Flush — Step by Step

Safety note: Brake fluid is highly corrosive to paint. Immediately rinse any spills with water. Wear gloves and eye protection.

Method 1 — Vacuum Bleeding (One-Person DIY)

A hand vacuum pump attaches to the bleed screw on each brake caliper or wheel cylinder and draws old fluid out without requiring a second person to pump the brake pedal. The most practical DIY method for a complete flush.

  1. Top off the reservoir with fresh fluid before starting — never let it run dry during bleeding, which introduces air into the system.
  2. Start at the caliper furthest from the master cylinder (typically right rear), working toward the closest (left front).
  3. Attach the vacuum pump hose to the bleed screw. Open the bleed screw 1/2 to 3/4 turn counterclockwise.
  4. Pump the vacuum until fluid flows steadily with no bubbles. Collect approximately 4–6 oz of fluid per corner.
  5. Close the bleed screw before releasing the vacuum. Top off the reservoir between corners.
  6. Repeat for all four corners. Finish by checking the reservoir level and topping off.

Method 2 — Two-Person Pedal Bleeding

The traditional method: one person pumps the brake pedal while the other opens and closes the bleed screw at each caliper. Effective but requires coordination to avoid introducing air. The sequence remains the same — furthest wheel first.

Recommended Tools

Brake fluid maintenance products on a dark garage workbench — DOT 3 and DOT 4 brake fluid bottles, hand vacuum bleeder pump, brake fluid test strips, clear tubing, and wrench

Brake Fluid Change Intervals

  • DOT 3 and DOT 4: every 2 years or 30,000 miles regardless of appearance
  • Any time the fluid tests above 200 ppm copper on test strips
  • Any time the fluid is dark brown or black
  • After any brake system repair (caliper replacement, master cylinder, brake line work)
  • Before track days or extended mountain driving — fresh fluid provides the highest boiling point margin

Warning Signs That Require Immediate Attention

  • Soft or spongy pedal: Air in the brake lines — bleed the system immediately
  • Pedal sinks to the floor under sustained pressure: Master cylinder failure or severe fluid boiling
  • Brake warning light on with normal pad level: Low fluid from a leak — inspect all brake lines and calipers
  • Fluid visible on the ground near a wheel: Caliper or wheel cylinder leak — do not drive until repaired
