Car Suspension Inspection Guide — How to Check Shocks, Struts, Ball Joints, and Bushings at Home
The suspension system is the collection of components that connects your vehicle's wheels to the frame and absorbs road impacts. It includes shock absorbers or struts, control arms, ball joints, tie rod ends, sway bar links, and rubber bushings at every pivot point. Unlike an oil change that has a clear service interval, suspension wear is gradual — handling degrades so slowly that many drivers don't notice until a component fails completely. A worn ball joint that separates at highway speed, or a shock absorber so degraded that the vehicle can't maintain contact with the road during emergency braking, are serious safety failures. A thorough suspension inspection takes about 30–45 minutes under a lifted vehicle and costs nothing but time.
Symptoms That Signal Suspension Problems
- Excessive bouncing: The vehicle continues to bounce after hitting a bump rather than settling in 1–2 oscillations — worn shock absorbers or struts
- Nose dive under braking: The front of the vehicle dips sharply when braking — front struts or shocks worn
- Body roll in corners: Excessive lean when turning — worn sway bar links or bushings
- Pulling to one side: Steering pulls left or right without input — can indicate worn tie rod ends, ball joints, or alignment issues from worn bushings
- Clunking or knocking: Noise over bumps or during low-speed turning — worn ball joints, loose sway bar end links, or degraded bushings
- Steering wheel vibration: Vibration at highway speed or through turns — worn tie rod ends or wheel bearing
- Uneven tire wear: Cupping (scalloped wear pattern) indicates shock absorber failure; one-sided wear indicates alignment issues from worn suspension geometry components
What to Inspect and How
Shock Absorbers and Struts

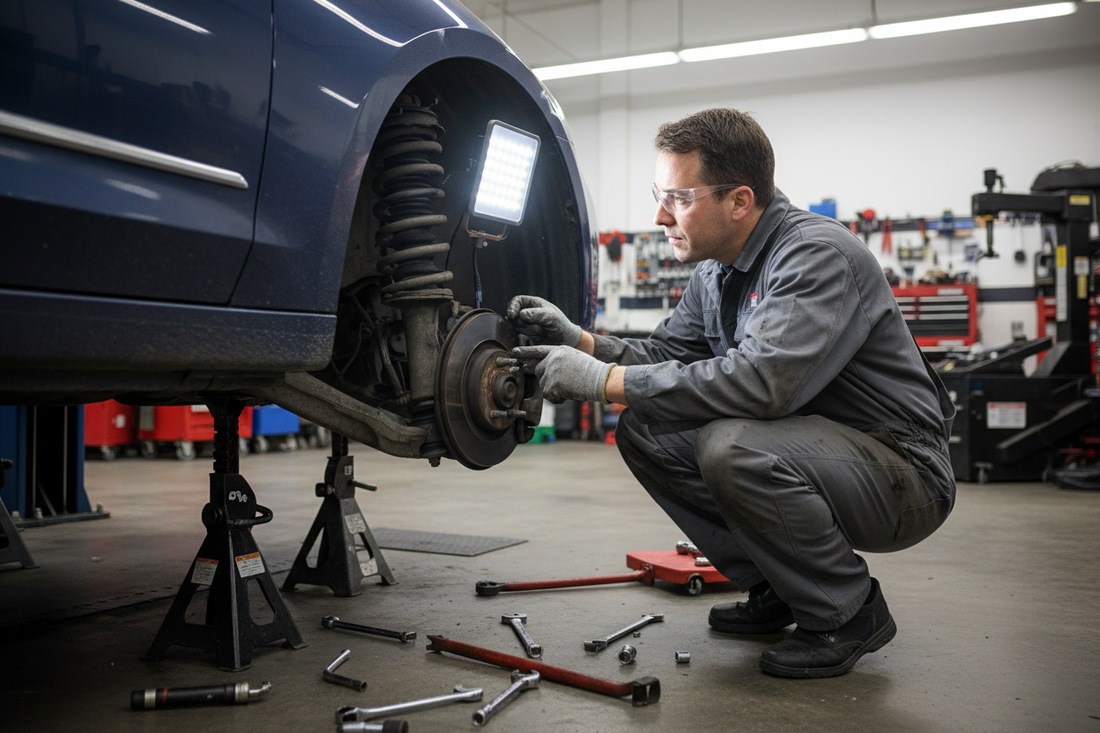

Raise and support the vehicle safely on jack stands. Inspect the shock or strut body for oil leaks — a wet, oily film on the outside of the body indicates the internal seal has failed. Light surface moisture is normal; a heavy oil coating is not. Inspect the strut boot (the rubber accordion cover over the rod) for tears — a torn boot allows dirt to contaminate the rod and accelerate seal wear. Inspect the top mount (where the strut connects to the chassis) for cracks or play.
Bounce test: With the vehicle on the ground, push down firmly on each corner and release. The corner should rise, settle, and stop in no more than 1–2 bounces. More than 2 bounces indicates a worn shock or strut.
Ball Joints
Ball joints connect the control arm to the steering knuckle and allow the wheel to steer and the suspension to travel. Worn ball joints can separate without warning. With the vehicle on jack stands:
- Radial (in-out) play: Grip the tire at 9 and 3 o'clock and push/pull. More than 1/8" of movement at the tire indicates a worn tie rod end or ball joint.
- Axial (up-down) play: Grip the tire at 12 and 6 o'clock and push/pull. Movement indicates worn ball joints. Load-bearing ball joints (usually lower) should have zero axial play.
- Visual inspection: Check the ball joint boot for cracks or grease leakage — a dry or torn boot allows contamination of the ball and socket.
Control Arm Bushings
Rubber bushings cushion the pivot points of control arms. Grasp the control arm and attempt to move it in directions it shouldn't travel — fore-aft movement with the suspension loaded. Use a pry bar between the bushing and frame to check for excessive compliance — a small amount of flex is normal; visible cracking or splitting of the rubber, or the bushing separating from its metal sleeve, requires replacement.
Sway Bar Links and Bushings
Sway bar end links connect the sway bar to the control arm or strut. Grab each link and attempt to wiggle it — any looseness or clunking indicates a worn link. Inspect the sway bar mounting bushings (the rubber clamps that mount the bar to the chassis) for cracks or the bar pulling through the bushing.
Tie Rod Ends
Tie rod ends connect the steering rack to the steering knuckle. Check for radial play as described above. Also grasp the tie rod end and attempt to move the joint in all directions — it should pivot smoothly but have no play perpendicular to its intended range of motion. Check the boot for tears and grease loss.
Strut Mounts and Bearings
Have an assistant turn the steering wheel slowly lock-to-lock while you listen and feel at the top of the strut tower. Grinding or clicking during steering indicates a worn strut bearing plate. Rocking or clunking at the top mount indicates worn mount bushings.
Recommended Tools
- OTYTY 40W 2000LM Rechargeable LED Work Light — Magnetic, Gooseneck Flashlight for Car Inspection
- Magnetic LED Work Light Rechargeable 1000LM — Flexible Gooseneck, Top & Base Magnets for Auto Repair
- Retisee 2-Pack 780LM Magnetic Work Light USB Rechargeable — Portable Inspection Light for Car Repair
- Vector Breaker Bar 3/8" Drive x 15" Swivel Head — for leveraging suspension fasteners, CR-V
- ARES Compact Double End Metal Skin Wedge Prybar — Curved and Straight Ends for Bushing Inspection
When to Replace vs. Monitor
- Replace immediately: Any measurable ball joint play, torn ball joint boot with grease loss, separated bushing, bent or cracked control arm, leaking strut with bounce test failure
- Replace soon (within one service interval): Cracked but intact rubber bushings with no separation, worn sway bar links with minor play, leaking strut without bounce test failure
- Monitor: Light surface moisture on shock body without leak, minor boot cracks without grease loss
After any suspension repair, always have the wheel alignment checked and corrected — replacing control arms, ball joints, or tie rod ends changes the suspension geometry and will cause rapid uneven tire wear if alignment is not reset. Browse our Floor Jacks and Jack Stands collections for safe vehicle lifting equipment needed for a thorough suspension inspection.
