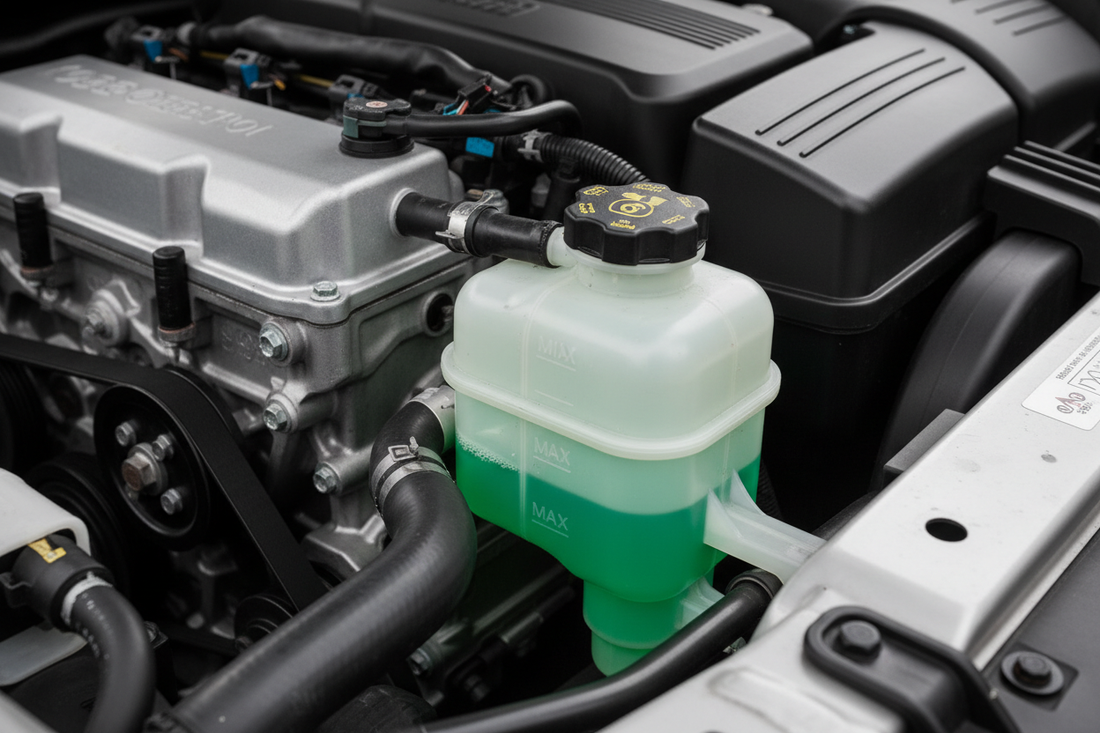

Car coolant overflow reservoir under the hood — translucent white plastic coolant reservoir with MIN/MAX level markings, bright green coolant visible inside, radiator hoses in background

Coolant Flush & Replacement Guide — How to Drain and Refill Your Car's Cooling System

Engine coolant (antifreeze) does two jobs: it prevents the coolant from freezing in winter and raises its boiling point above 212°F to protect against overheating in summer. Over time, the corrosion inhibitors in coolant break down. Once depleted, the fluid becomes acidic and begins corroding aluminum components — the radiator, heater core, water pump housing, and engine block. A corroded water pump is a $300–600 repair; a coolant flush is a $20–40 DIY job done in about an hour. This guide covers coolant types, how to check coolant condition, and a complete step-by-step flush procedure.

Coolant Types

IAT — Inorganic Additive Technology (Green)

The traditional green coolant used in most vehicles before the late 1990s. Contains silicates and phosphates for corrosion protection. Service interval: every 2 years or 30,000 miles. Still used in many older domestic vehicles.

OAT — Organic Acid Technology (Orange, Red, Pink)

Used by GM (Dex-Cool), some Asian manufacturers, and many European vehicles. Uses organic acids instead of silicates. Service interval: 5 years or 150,000 miles. Do not mix with IAT — mixing causes a gel-like sludge that clogs passages.

HOAT — Hybrid OAT (Yellow, Turquoise, Blue)

Combines silicates and organic acids. Used by Ford, Chrysler, and many European manufacturers. Service interval: 5 years or 150,000 miles. Also available in "G-05" and "G-12" European formulations.

Always use the coolant type specified in your owner's manual. If mixing types is unavoidable in an emergency, flush the system as soon as possible and refill with the correct fluid.

How to Check Coolant Condition

The coolant overflow reservoir is a translucent plastic tank connected to the radiator by a hose, typically marked with MIN and MAX lines. Never open the radiator cap or reservoir cap when the engine is hot — the system is pressurized and can cause severe burns. Always check cold.

  • Color: Fresh coolant is bright and translucent. Murky, rust-colored, or brown coolant has depleted inhibitors and is corroding the system.
  • Smell: A sweet smell from the engine bay or inside the cabin (through the HVAC) indicates a coolant leak — inspect hoses, the radiator, and the heater core.
  • Oil in coolant: Brown or foamy coolant indicates oil contamination — a potential head gasket failure. Do not drive and seek diagnosis immediately.
  • Test strips: Coolant test strips measure pH and freeze protection level in seconds. Ideal pH is 7–11; below 7 the fluid is acidic and actively corroding.
Person draining coolant from a car radiator — gloved hands opening the petcock drain valve at the bottom of a radiator, bright green coolant draining into a catch pan on the garage floor

Coolant Flush — Step by Step

Safety: Coolant is toxic to animals. Dispose of used coolant at an auto parts store recycling station — never pour it down a drain or on the ground.

What You'll Need

  • Correct coolant concentrate or pre-mix for your vehicle
  • Distilled water (if using concentrate — mix 50/50 for most climates)
  • Drain pan with at least 2-gallon capacity
  • Funnel
  • Gloves and eye protection

Step 1 — Let the Engine Cool Completely

Wait at least 2 hours after driving. The cooling system operates under pressure — opening a hot cap can eject scalding fluid.

Step 2 — Locate and Open the Drain

Position your drain pan under the radiator. Most radiators have a petcock drain valve at the bottom corner — turn counterclockwise to open. On radiators without a petcock, remove the lower radiator hose from the radiator (have the pan ready — it will drain quickly). Let the coolant drain completely.

Step 3 — Flush with Distilled Water (Optional but Recommended)

Close the drain, refill the system with distilled water, run the engine for 10 minutes with the heater set to maximum heat (this opens the heater core valve and flushes the entire system), then drain again. This removes old coolant residue and loose deposits.

Step 4 — Refill with Fresh Coolant

Close the drain valve or reinstall the lower hose. If using concentrate, mix 50% coolant with 50% distilled water — tap water contains minerals that can cause scale deposits and reduce corrosion protection. Pour the mixture slowly into the reservoir or radiator cap opening until full. Leave the cap off.

Step 5 — Bleed the Air

Start the engine with the cap off and let it idle. As the thermostat opens (usually at 180–200°F), air bubbles will rise and the level will drop — top off as needed. Once the upper radiator hose becomes hot (thermostat open), squeeze it several times to help release trapped air. Replace the cap and check for leaks.

Step 6 — Check Level After First Drive

After the first drive and cool-down, recheck the reservoir level and top off if needed. Air pockets can take a full heat cycle to fully purge.

Recommended Tools

Coolant flush products on a dark garage workbench — jug of concentrated antifreeze coolant, distilled water, radiator flush cleaner, funnel, and drain pan

Coolant Change Intervals

  • IAT (green): every 2 years or 30,000 miles
  • OAT and HOAT (orange, yellow, red, pink): every 5 years or 150,000 miles
  • Any time coolant is discolored, murky, or tests acidic on pH strips
  • After any cooling system repair (water pump, thermostat, hoses, radiator)
  • If overheating has occurred — overheating degrades inhibitors rapidly

Browse our Car Care & Detailing collection for vehicle maintenance supplies, and our Hand Tools collection for funnels and garage tools needed for a complete coolant flush.
