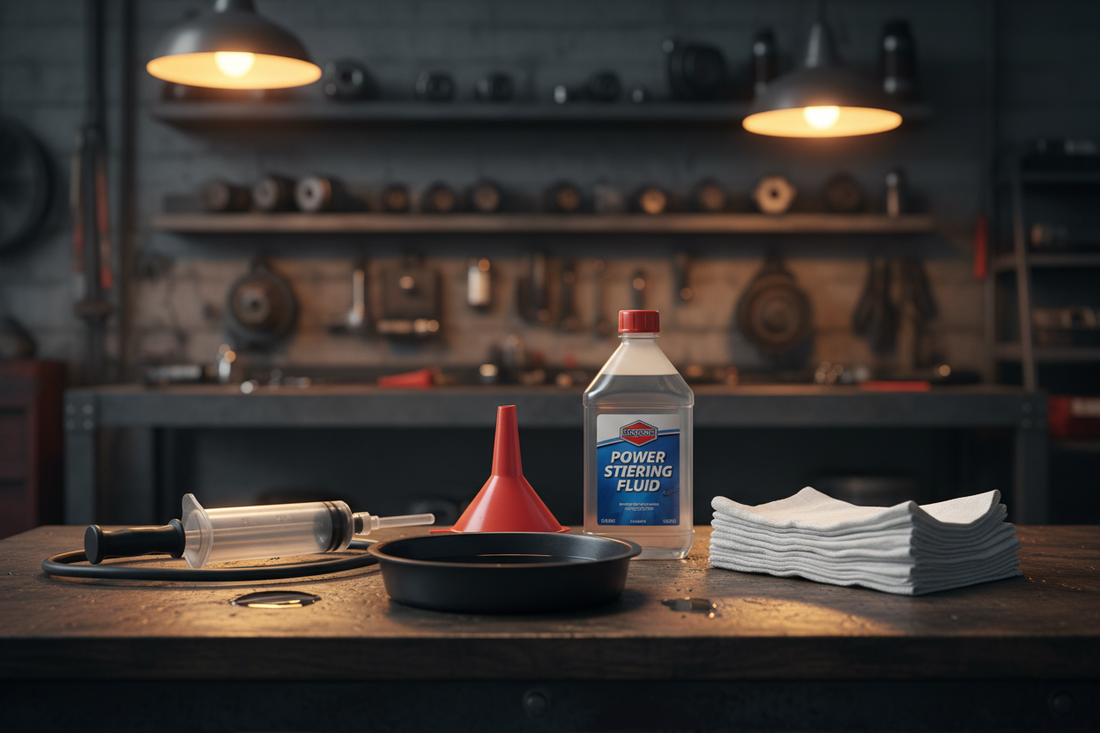

Power steering service products on a dark garage workbench — bottle of power steering fluid, large fluid syringe extractor, funnel, clean white shop rags, and small drain pan

Power Steering Fluid Guide — How to Check, Top Off, and Flush Power Steering Fluid at Home

Power steering fluid is the hydraulic fluid that transmits force from the steering wheel through the power steering pump and rack to the front wheels. It also lubricates the pump, rack seals, and hose fittings. Over time, power steering fluid degrades from heat cycles and oxidation — it darkens, loses its viscosity properties, and accumulates rubber particles from seal wear and metal particles from the pump. Degraded fluid accelerates seal wear, which leads to leaks; continued operation with a low or contaminated system causes pump whine, heavy steering, and eventually pump failure. Power steering pump replacement costs $200–600 including labor; a fluid flush costs under $20 and takes about 20 minutes.

Note: Many vehicles made after 2010 use electric power steering (EPS) with no hydraulic fluid at all. Check your owner's manual — if there is no power steering reservoir under the hood, your vehicle likely has EPS and requires no fluid service.

How to Check Power Steering Fluid

Power steering fluid reservoir under the hood with cap removed — dark brownish fluid visible inside with MIN/MAX markings, power steering pump and hoses in background

The power steering reservoir is typically a small translucent plastic reservoir near the front of the engine bay, often labeled with a steering wheel icon. The cap dipstick or reservoir side markings have MIN/MAX lines for both cold and hot fluid levels.

  • Check cold: Before starting the engine, fluid should be at or near the COLD MIN/MAX range
  • Check hot: After driving, fluid should be at the HOT MIN/MAX range (slightly higher than cold)
  • Color: Fresh fluid is clear to light pink or amber. Dark brown or black fluid is overdue for replacement.
  • Smell: A burnt smell indicates fluid has overheated — inspect the system for a slipping belt or pump issue before flushing
  • Foamy or milky fluid: Air in the system or water contamination — inspect for leaks and replace fluid
  • Level dropping repeatedly: Indicates a leak — inspect hoses, rack boots, and pump seals before simply topping off

Power Steering Fluid Types

Unlike engine oil, power steering fluid is not universally standardized. Using the wrong fluid damages seals and causes leaks.

  • Universal ATF (Dexron/Mercon): Many older domestic vehicles (GM, Ford, Chrysler) use automatic transmission fluid in the power steering system. Check the reservoir cap or owner's manual — it will specify "ATF" or a specific ATF grade if this applies.
  • Manufacturer-specific PSF: Honda, Toyota, Audi, BMW, and others specify their own power steering fluid formulations. Do not substitute generic fluid in these systems — seal incompatibility causes rapid deterioration.
  • Generic "Power Steering Fluid": Acceptable for many domestic vehicles that specify PSF rather than ATF. Always verify against the owner's manual.

Topping Off Power Steering Fluid

If the fluid level is low but the fluid appears clean and in good condition, simply top off to the correct level mark for the current fluid temperature. Use the exact fluid specification from the owner's manual. Do not overfill — overfilling can cause fluid to foam when the system reaches operating temperature.

Power Steering Fluid Flush — Drain and Refill Method

A complete flush requires either a professional flushing machine or a series of drain-and-refills. The turkey baster / suction method is the most accessible DIY approach:

Gloved hand using a large fluid syringe to extract old dark power steering fluid from the reservoir, clean shop rag nearby, engine bay background
  1. Extract old fluid from the reservoir: Use a large fluid syringe or suction pump to remove as much old fluid as possible from the reservoir. Wipe the inside of the reservoir with a clean lint-free cloth if accessible.
  2. Refill with fresh fluid: Add fresh fluid of the correct specification to the MAX line.
  3. Cycle the steering: Start the engine. Turn the steering wheel slowly from full lock to full lock 5–6 times. This circulates fresh fluid through the rack and pump, mixing it with old fluid remaining in the system.
  4. Extract and refill again: Turn off the engine. Extract the fluid from the reservoir again and refill with fresh fluid. Repeat the lock-to-lock cycling.
  5. Repeat 3–4 times: Each cycle removes more of the old contaminated fluid. After 3–4 cycles, the fluid in the reservoir should be noticeably cleaner and lighter in color.
  6. Final fill and check: Fill to the correct level mark, cycle the steering once more, check the level, and top off if needed. Check for leaks at the reservoir, hoses, and rack boots.

Symptoms That Indicate Power Steering Problems Beyond Fluid

  • Whining or moaning noise when turning: Low fluid, air in system, or worn pump — check level first
  • Heavy steering at low speeds only: Often a worn pump struggling at idle; can also indicate a slipping drive belt
  • Stiff steering in cold weather that improves when warm: Normal on high-mileage systems; severe cases indicate a worn pump or thickened fluid
  • Fluid on the garage floor under the front of the vehicle: Rack seal leak (pink/amber fluid near center) or hose connection leak — locate the source before refilling
