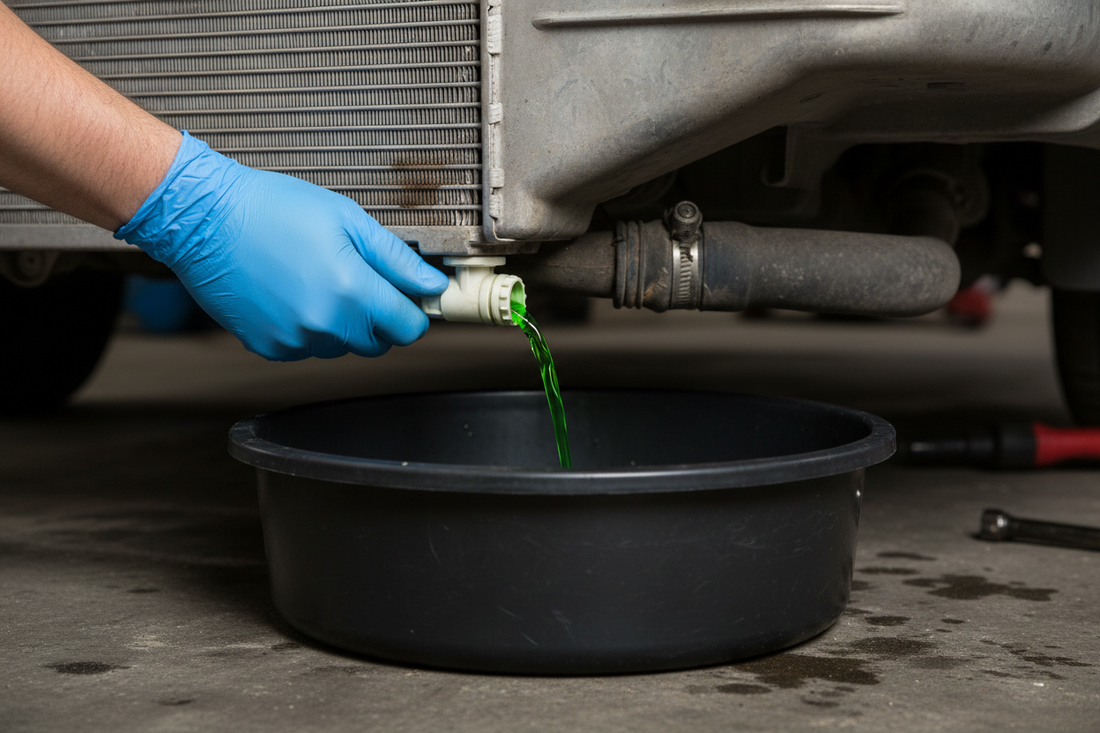

Gloved hand opening a radiator drain petcock valve at the bottom of a radiator, green coolant beginning to drain into a large catch pan below

Coolant Flush Guide — How to Drain and Replace Engine Coolant at Home

Engine coolant (antifreeze) does two critical jobs: it transfers heat from the engine to the radiator, and it protects the cooling system from freezing in winter and boiling over in summer. Coolant also contains corrosion inhibitors that protect aluminum heads, steel blocks, copper radiators, and rubber hoses from deterioration. These inhibitors deplete over time regardless of fluid color — old coolant becomes acidic and actively corrodes the components it's supposed to protect. A failed water pump, cracked radiator, or blown head gasket from an overheating event can cost thousands; a coolant flush costs under $30 in parts and takes about an hour.

Coolant Types — Do Not Mix

Coolant color comparison — four clear containers showing bright green traditional coolant, orange HOAT coolant, pink-red OAT coolant, and blue European coolant side by side

Coolant formulations use different corrosion inhibitor chemistry that is not compatible across types. Mixing coolants can cause the inhibitors to react, forming a gel that clogs the heater core and radiator passages.

  • Green (IAT — Inorganic Additive Technology): Traditional formula for older vehicles. Service interval 2 years / 30,000 miles. Contains silicates and phosphates. Do not use in modern aluminum-intensive engines.
  • Orange/Red (OAT — Organic Acid Technology): GM Dex-Cool and similar. Service interval 5 years / 150,000 miles. Uses organic acid inhibitors only. Do not mix with green IAT coolant.
  • Yellow/Orange (HOAT — Hybrid OAT): Used by Ford, Chrysler, and many European and Asian manufacturers. Combines silicates with organic acids. Service interval 5 years / 150,000 miles. Specific HOAT formulations vary by manufacturer.
  • Blue/Pink (European OAT / G12/G13): Used by VW, Audi, BMW, Mercedes. Silicate-free or low-silicate. Using incorrect coolant in these systems causes rapid corrosion of aluminum components.

Always verify the correct coolant specification in your owner's manual. When in doubt, drain completely and refill with the correct type rather than topping off with an incompatible fluid.

How to Check Coolant Condition

Check the coolant level in the overflow/expansion tank when the engine is cold — never open the radiator cap on a hot engine. Pressurized coolant can spray and cause severe burns.

  • Level: Should be between MIN and MAX lines on the translucent overflow tank
  • Color: Should be the correct color for your type, not brown or rusty
  • Test strips: Coolant test strips check freeze protection and inhibitor depletion in seconds — dip and compare to the chart
  • Oily film on surface: Indicates oil contamination — possible head gasket failure; do not drive, seek diagnosis immediately
  • Milky or foamy: Coolant mixing with oil — head gasket failure; same as above

Coolant Flush — Step by Step

  1. Let the engine cool completely: Wait at least 2–3 hours after driving. Never work on a pressurized hot cooling system.
  2. Locate the radiator drain (petcock): The drain valve is at the bottom of the radiator — usually a plastic thumbscrew or a plug requiring a screwdriver or small wrench. Place a large drain pan underneath. Most passenger cars hold 1.5–2 gallons of coolant; trucks may hold more.
  3. Open the radiator cap: Remove the cap from the radiator or overflow tank to allow the system to drain freely without creating a vacuum.
  4. Open the petcock and drain: Turn the petcock counterclockwise to open. Allow the system to drain completely — 5 to 10 minutes.
  5. Flush with distilled water (optional but recommended): Close the petcock, fill the system with distilled water, run the engine for 5 minutes with the heater set to max to flush the heater core, let it cool, then drain again. This removes residual old coolant and debris.
  6. Close the petcock and refill: Hand-tighten the petcock. Fill the system with the correct coolant mixed to the proper concentration — typically 50/50 coolant to distilled water for freeze protection to approximately -34°F. Pre-mixed coolant is available and requires no mixing. Do not use tap water — minerals in tap water accelerate corrosion.
  7. Bleed air from the system: Air pockets in the cooling system cause hot spots and heater performance issues. On most vehicles, leave the radiator cap off, start the engine, and let it warm up to operating temperature. Coolant level will drop as air escapes — add coolant as needed to keep the radiator or overflow tank full. Watch the temperature gauge for any spikes. Once the thermostat opens (engine at operating temp), squeeze the upper radiator hose a few times to help dislodge trapped air.
  8. Install the cap and check the overflow tank: Once the engine has reached operating temperature and coolant level has stabilized, install the cap and verify the overflow tank is at the correct level. Check for leaks at the petcock, hoses, and clamps.
  9. Test drive and recheck: Drive for 10–15 minutes and recheck the coolant level after the engine cools.
Coolant flush products on a dark garage workbench — gallon jug of pre-mixed antifreeze coolant, coolant test strip, large drain pan, funnel, and distilled water jug

Recommended Tools

Service Intervals

  • Green IAT coolant: Every 2 years or 30,000 miles
  • Orange/Yellow OAT or HOAT coolant: Every 5 years or 150,000 miles — but test strips annually are recommended, especially in high-mileage vehicles
  • After any cooling system repair: Always refill with fresh coolant after replacing a water pump, thermostat, radiator, or hose — never reuse drained coolant
  • Coolant disposal: Coolant is toxic to animals and must be disposed of properly — most auto parts stores accept used coolant for recycling

Browse our Car Care & Detailing collection for vehicle maintenance supplies and our Hand Tools collection for screwdrivers and wrenches needed for cooling system service.
